HT91808

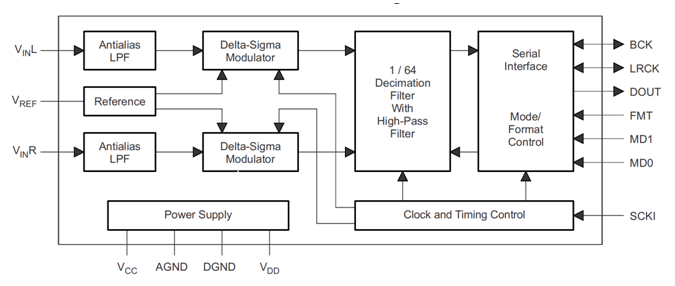

The HT91808 device is a high-performance, low-cost, single-chip, stereo analog-to-digital converter with single-ended analog voltage input. The HT91808 device uses a delta-sigma modulator with 64-times oversampling and includes a digital decimation filter and high-pass filter that removes the dc component of the input signal. For various applications, the HT91808 device supports master and slave mode and two data formats in serial audio interface.

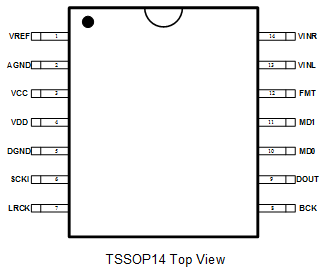

The device is available in TSSOP14 package.

價(jià)格:￥0.00

庫(kù)存99999

數(shù)量:

下載資料

特點(diǎn)

24Bit Delta-Sigma Stereo ADC
Single-Ended Voltage Input: 3 Vp-p
High Performance
THD+N: -90dB (Typical)
SNR: 99dB (Typical)
Dynamic Range: 99dB (Typical)
Flexible PCM Audio Interface
Master- or Slave-Mode Selectable
Data Formats: 24Bit I²S, 24Bit Left-Justified
Power Down and Reset by Halting System Clock
Analog Antialias LPF Included
Sampling Rate: 8 kHz–96 kHz
System Clock: 256 f_S, 384 f_S, 512 f_S
Resolution: 24 Bits
Dual Power Supplies
5V for Analog
3.3V for Digital
TSSOP14 Package
